Europe Stock Growatt On Grid Solar Inverter 7kw 8kw 9kw 10kw Price
A single-phase residential grid-tied photovoltaic (PV) inverter is a device that converts the DC power generated by solar panels into AC power suitable for use in homes. It allows homeowners to harness solar energy and feed any excess electricity back to the grid, reducing dependency on traditional power sources. This inverter ensures seamless integration with the utility grid, enabling the utilization of solar power while still receiving electricity from the grid when needed. It offers efficient power conversion, real-time monitoring, and safety features to optimize energy usage and reduce electricity costs for residential customers embracing solar energy.
- Model:MIN 7000TL-X / MIN 8000TL-X / MIN 9000TL-X / MIN 10000TL-X
- Max. PV Input power (W):7000W / 8000W / 9000W / 10000W
- MPPT Voltage Range (V):60V-600V
- No. of MPP Trackers:2 / 2 / 3 / 3
- No. of PV strings per tracker:1+2 / 1+2 / 1+1+2 / 1+1+2
- Weight (kg):18.2 kg
- Product categories
how can we help you
Description
Europe Stock Growatt On Grid Solar Inverter 7kw 8kw 9kw 10kw Price
Growatt MIN 7000-10000TL-X inverter offers several advantages for homeowners.
–It efficiently converts solar energy into usable AC power, reducing reliance on conventional electricity sources and lowering electricity bills.
–It enables the seamless integration of solar power with the grid, allowing homeowners to sell excess electricity back to the utility company.
–These inverters provide real-time monitoring, ensuring optimal performance and allowing homeowners to track their energy production.
–Additionally, they come with safety features that protect against power surges and other electrical issues, ensuring a reliable and secure solar energy solution for residential customers.
The following are some descriptions of Growatt Min series inverter 6kw-10kw, if you need the full datasheet, please contact our sales team.
|
Datasheet
|
MIN 7000TL-X
|
MIN 8000TL-X
|
MIN 9000TL-X
|
MIN 10000TL-X
|
|
Input Data (DC)
|
||||
|
Max. recommended PV power
(for module STC) |
12000W
|
12000W
|
13500W
|
15000W
|
|
Max. DC voltage
|
600V
|
600V
|
600V
|
600V
|
|
Start voltage
|
100V
|
|||
|
Nominal voltage
|
360V
|
|||
|
MPP voltage range
|
60V-550V
|
60V-550V
|
60V-550V
|
60V-550V
|
|
No. of MPP trackers
|
2 / 2 / 3 / 3
|
|||
|
No. of PV strings per MPP tracker
|
1+2 / 1 +2 / 1+1+2 / 1+1+2
|
|||
|
Output data(AC)
|
||||
|
AC nominal power
|
7000W
|
8000W
|
9000W
|
10000W
|
|
Max. AC apparent power
|
7000VA
|
8000VA
|
9000VA
|
10000VA
|
|
Nominal AC voltage(range*)
|
Default:240V split-phase, optional:208V & 240V single phase , 183-228@208V 211-264V@240V
|
|||
|
AC grid frequency(range*)
|
50/60 Hz (45-55Hz/55-65 Hz)
|
|||
|
AC grid connection type
|
Single phase
|
|||

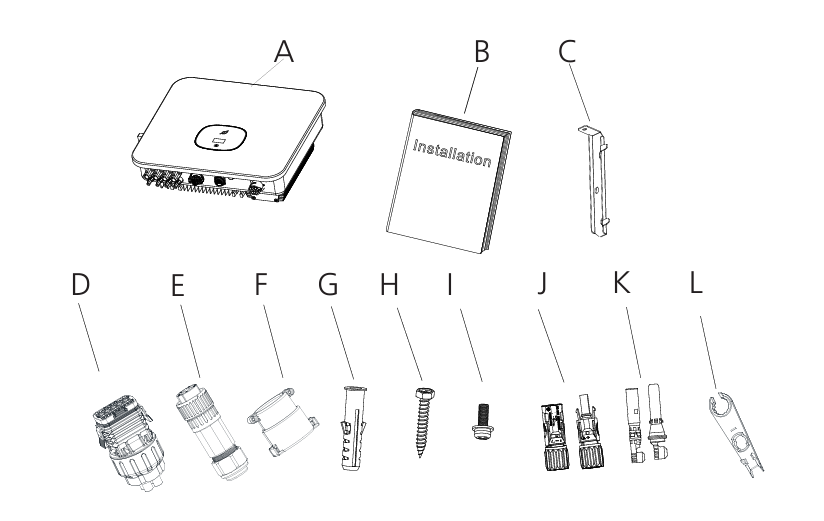

Accessories and Inverter Parts Inside the Package of Growatt MIN Series Inverter
In the following table you will find the accessories and parts inside the package of the inverter
|
Object
|
Description
|
Quantity
|
Object
|
Description
|
Quantity
|
|
A
|
Inverter
|
1
|
H
|
Plastic expansion tube
|
3
|
|
B
|
Quick Guide
|
1
|
I
|
Self-tapping screw
|
3
|
|
C
|
Mounting bracket
|
1
|
J
|
Security screw
|
1
|
|
D
|
AC waterproof cover
|
1
|
K
|
AC OT terminal
|
3
|
|
E
|
Monitor(Optional)
|
1
|
L*
|
PV Male &Female cable coupler
|
3/4
|
|
F
|
4PIN COM port signal connector
|
1
|
M*
|
PV Pin&Socket contacts
|
3/4
|
|
G
|
Waterproof connector
|
1
|
O
|
PV terminal removal tool
|
1
|
|
P
|
AC terminal block insulation partition
|
2
|
|||
|
* MIN7000-8000TL- X(E) 3 MIN9000-10000TL-X 4
|
|||||

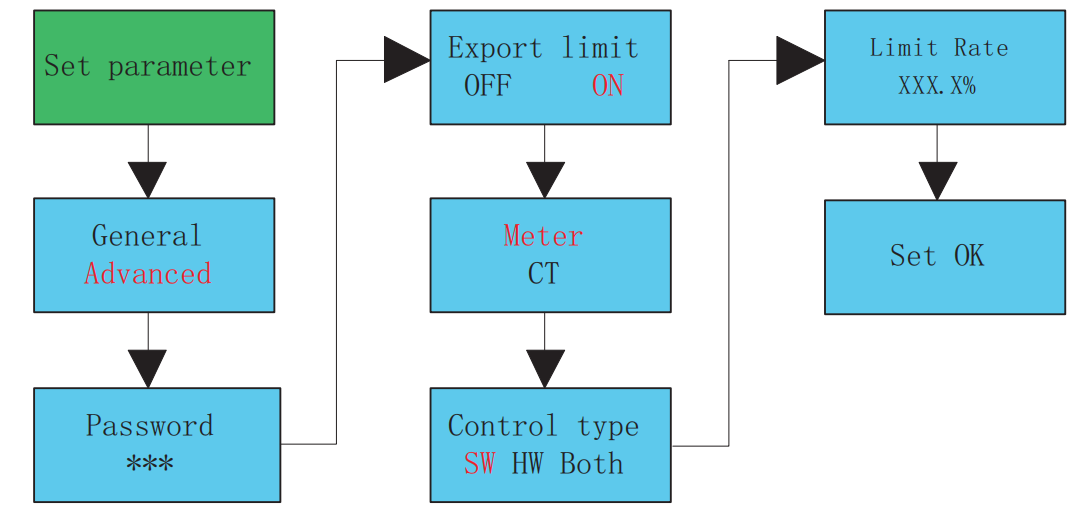

Export Limitation Setting
If the local grid company requires to limit the output power from your inverter systems,we introduce the concept of Export Limit Rate.The ratio of your system output power divided by the rated power of the inverter is called Export Limited Rate.For example,if the local grid company only accepts 8kW from your 10kW system,then the Export Limit Rate of 10kW inverter should be 80%.
